Home/Diesel Flat Die Pellet Mill/AMSP 230D Flat Die Pellet Mill

AMSP 230D Flat Die Pellet Mill


Suitable for different feedstock. Adopt roller driven pellet mill design, this pellet maker has outstanding performance of making hard wood pellets.


Wood Pellet: 150-190kg/h
Feed Pellet: 300-400kg/h


low price pellet mill

This AMSP-230D pellet mill is a diesel-driven pelletizing equipment which can be used to compress raw fodder or biomass particle into pellets for poultry feed or recyclable energy. Depending on the ingredients, these pellets can be used for an animal feed that’s easily stored, cheap and has a long lifespan, or as an energy efficient fuel for fireplaces, wood-burning furnaces and stoves.
A. Unique Features

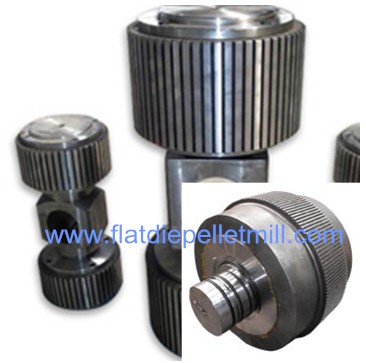

pellet mill roller★. Simple structure, wide application, little space needed.
★ For making powdery feedstuff like grass powder, you need not to add extra liquid, so the finished feed pellets contains as much moisture as before pelletizing.
★ Animal feed pellets processed by this pellet machine have smooth surface, not easy to break and highly cooked.
★ Suitable for different feedstock.
★ The pellet mill roller is made of high alloy steel which prolongs use life.

B. AMSP-230D Pellet Maker Application
Best choice of small animal feeding farms; also for making sawdust pellets, rice husk pellets, cotton stalk pellets, grass pellets and other agro wastes pellets.

sawdust pellets

C. AMS-230D Flat Die Pellet Mill Parameters

Model Capacity   Power Dia of Die Mould Packing Size
AMSP-230D Wood Pellet: 150-190kg/h
Feed Pellet: 300-400kg/h
22HP 230mm 1180*560*950mm

Factors on the Variation in Pellet Mill Productivity
With different raw material in pellet production line, the rated capacity will always change. Why does pellet mill yield varies? And what determines the pellet productivity?

As stated above, the capacity for wood pellet goes to 150-190 kg/h while for feed pellet 300-400 kg/h. How do we know the difference of these two numbers? What’s the reason for high yield of feed pellets?

It’s time to come to raw material in pellet processing procedure. What you may not be aware of is that the productivity of a pellet mill does change depending on the material to be processed.

rice straw pellet machineWood pellets are generally made from compacted sawdust or other wastes. When it comes to source of these semi-finished particles, the raw materials are always some woody biomass sources including palm kernel shell, coconut shell, whole-tree removal or tree tops and branches leftover after logging and which otherwise help replenish soil nutrients. Pellets are manufactured in several types and grades as fuels for electric power plants, home and other applications in between. Pellets are extremely dense and can be produced with low moisture content (below 10%) that allows them to be burned with a very high efficiency.

feed pellets feedstockAs well grasses can also be pelletized, creating grass pellets. Typical materials for grass pellets include switchgrass, alfalfa and miscanthus. The main ingredients used in commercially prepared feed are the feed grains, which include corn, soybean, sorghum, oats, barley, cassava and potato.

Obviously, the density of wood powder is much higher than grass density. For in same volume, the weight of former is much heavier than the latter. It’s simply the case that these grass material require less energy to compress and generally require less time in the die to achieve sufficient compression.
