AMSP120D Flat Die Pellet Maker


With a flat die wood pellet mill of diesel engine, you can make stove fuel pellets as well as feed pellets or bedding pellets for animals. Capacity is about 60 kg/h.


Wood Pellet: 40-60 kg/h
Feed Pellet: 60-100 kg/h


low price pellet mill

Flat Die Pellet Mill for Making Pellets at Home
The demand for more environmentally friendly options has risen. You may have seen a biomass plant or wood pellet manufacturer with profitable return. Are you ready to collect available agro wastes and make your own wood pellets to burn in your pellet stove at home. With a flat die wood pellet mill of diesel engine, you can also make feed pellets or bedding pellets for animals. What’s more, if your area is lack of electricity or you want to process the agro wastes directly in farm, the diesel engine pellet mill is a great help. The capacity of AMSP-120D small pellet mill is about 60 kg/h, you can set working hours freely, just according to your pellets demand, whenever and where is possible.

Details of Flat Die Pellet Mill (With Diesel Engine)
Main Spare Parts are Rolls, Pellet Die, Roller Shell, Bearings&Seals,etc.
Pellet mill dies are made of 20CrMo or 4CrMo13 which is featured with high hardness & wear resistance after heat treatment.

 roller shell

pellet mill roller shell

shafts and roller shell

shafts and shells for pellet rollers

cover centering rings

die and cover centering rings

flanges and spacers

flanges and spacers

complete roll

complete roll

A. Amisy Flat Die Pellet Mill Spare Parts Highlights
★★★★★Robust construction
★★★Excellent design
★★High compressive strength
◆The diameter of die holes rang from 2.5-10 mm and we can also supply different dies molds according to your needs.
B. AMSP-120D Flat Die Pellet Mill Specifications

Mould Dia
Packing Size
Wood Pellet: 40-60 kg/h
Feed Pellet: 60-100 kg/h
Pellet Size: Can Adjust By Your Demand
Warranty: 1 Year
C. Raw Material for Making Pellets

◆ Biomass pellets: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, woodshavings, sawdust,etc.
◆ Feed Pellets: Animal feed was a product of materials such as alfalfa, grain and oil cake,etc.
◆ Moisture content of material: 14%-18%
◆ Material size: less than 5mm.

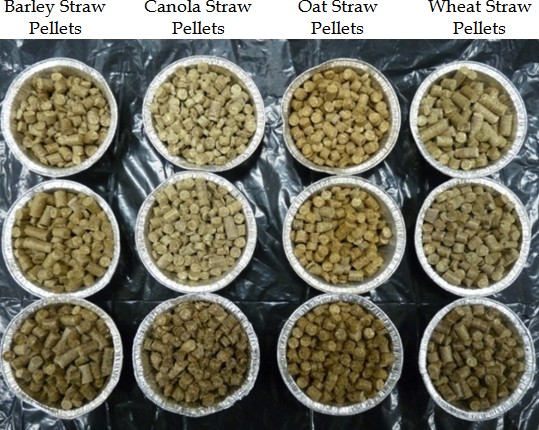

D. Biomass Pellets made by this Flat Die Wood Pellet Mill
horse bedding pellets

E. Feed Pellets produced by this Household Pellet Machine

Corn feed pellets 3mm

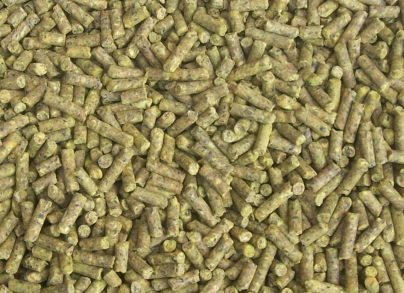

sweet corn feed pellets 3mm

Pig feed pellets 6mm

pig feed pellets 6mm

Halibut feed pellets 2mm

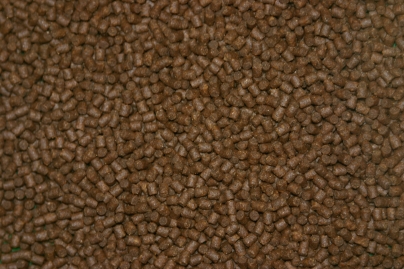

halibut feed pellets 2mm

F. 120D Flat Die Pellet Mill Review
★★★★★Low noise
★★★★★Very convenient to Move
More customer reviews

Performance Features of Mini Pellet Mill with Diesel Engine

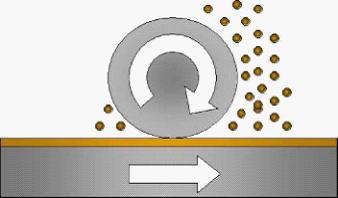

flat die pellet mill working principle1. Small and light, making small-scale and home production available.
2. Diesel engine makes pellets production possible in the rural area with shortage supply of electricity.
3. For flat die wood pellet mill, it uses KAF reducer(triple reduction gear), wood pellet mill running smoothly with low noise and long life.
4. As a core unit of flat die pellet mill, rolls and dies are all made of high alloy steel.
5. When making different size, you just need to change the die mould.
6. With a design of rotating rolls and stationary dies, this flat die pellet is designed to make fuel pellet and feed pellets.

This household pellet mill has a rotating roller and a stationary die design. Once the powder drops into the mill, the rollers will spin with the diesel engine to force the powder through the holes of dies. In this way different size pellets will be made.

The benefits of flat die pellet mill with the design of rotating rollers and stationary dies come to two points. One is that the rotating rolls have longer service life than traditional design, the other is that this pellet machine design can not only process softwood (pine, spruce, cedar, fir, larch, douglas-fir etc) but also hardwood(mahogany, teak, walnut, oak, ash, elm, aspen, poplar, birch, maple etc).
Moreover, the pellet size can be designed to meet your requirement. Generally speaking, for fuel pellets, the diameter is from 4.5mm-12mm; feed pellets diameter is 1.5mm-12mm. Pellets length can be adjusted freely by changing the cutter position.

Two Points of Making Good Pellets for Wood Pellet Stoves

wood pellets and horse bedding pellets1. What makes best and clean wood pellets?
The answer is all wood, no bark, no leaves and other agro wastes added. For fuel pellets made of pure wood, it create most heat and least ash. This is also an attractive point for many families choose to make their own pellets, as they can choose what material to use and create a clean pellet stove burning condition, instead of buying inferior pellets with bad smell at a high price.
2. Hard wood pellets VS softwood pellets
Hardwood mainly includes mahogany, teak, walnut, oak, ash, elm, aspen, poplar, birch, maple etc.
Softwood mainly includes pine, spruce, cedar, fir, larch, douglas-fir etc. If you have the experience of buying fuel pellets, you may find many wood pellets sellers claim hardwood pellets to premium pellets, in fact, they are wrong. The nature for decides the pellets quality is BTU, not the hardness or weight. Let us take a look at the following table, you will be suddenly enlightened.

Hardwood White Oak 8810 BTU/pound
Softwood Yellow Pine 9610 BTU/pound

Biomass pellets are a heating fuel made of sawdust, agro wastes and forest wastes, etc. Making pellets for your own stoves can save many homeowners 40%-60% home heating cost. As wood pellets are not bulky, they burn in a more clean way, and more convenient than firewood. With a pellet stove to heat home in winter can provide a even more comfortable environment than traditional fossil fuel heating system. More and more families in UK and north America choose to buy a small pellet mill for home use.
Wood Pellet Stove Using Guidance

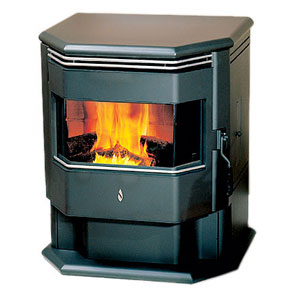

wood pellet stove using guidance1. Get start with a clean stove. Empty out your stove of all the ashes and heatproof bricks or cast iron grills.
2. Put your wood pellets into the stove. Open the stove and carefully set these inserts into your burning compartment. Fill the pellet basket with proper amount. It’s all depend on your stove capacity.
3. Start the stove. Generally the igniter will automatically ignite pellets in 3-7 minutes. If the fire does not start, adjust the air-to-pellet ratio by increasing air flow.
4. Adjust pellets amount and run speed to your desired setting.

Amisy Flat Die Pellet Mill brings you best solution in pelleting and particle size reduction. Whether it’s for feed pelletizing, biomass pelletizing, we’re your one-step shop solution.

Best Diesel flat die pellet mills for sale. CE Certified pellet mill; Low pellet machine price. Buy from flatdiepelletmill.com, enjoy great after-sale service free!
