Home/Electric Flat Die Pellet Mill/AMSPLM 300A Electric Flat Die Pellet Mill

AMSPLM 300A Electric Flat Die Pellet Mill


Small and light weight makes the portable pellet mill widely used in home, small farm, especially for making feed pellets. Pellet size and length are both adjustable.


Wood pellets 220-280 kg/h
Feed pellets 400-600 kg/h


low price pellet mill

AMSPLM 300A Electric Flat Die Pellet Mill Specifications

 Model   Power  Capacity  Packing Size  Dia of Die Mould
 AMSPLM 300A    15kw Wood pellets 220-280 kg/h
Feed pellets 400-600 kg/h
 1200*520*1050mm  300mm

Note: Three-phase Voltage–380v/50Hz

Get to Know AMSPLM 300A Electric Flat Die Pellet Mill
AMSPLM 300A flat die pellet mill can is of special pellet mill design with a running die mould and stationary rollers. The advantages of this design is low electricity consumption and efficient in making feed pellets. This portable feed pellet mill can process corn, bean dregs, straw, grass and rice hull powder into granulated pellets. You just put the pellet mill on the flat ground and then put the feedstock into feeding mouth, then the material will be pressed into the die hole by the friction between die mould and rollers. Usually the gap between die and rollers is 0.1-0.3mm for making feed pellets. The feed pellet length can be adjusted by the cutting knife. You can replace flat die to making feed pellets with different diameters of die holes. After the pellet die has been used for a period, you can turn oven it and continue to work.

Superiority of the Feed Pellets Produced by our Pellet Machine
★ Pelletizing rate is more than 95%.
★ Pellets are of uniform size, slippery surface.
★ Feed pellets are cooked and digestive.Pellets produced are of good intensity and shape, which is convenient to store and not easy to deteriorate.

animal feed pellets

6mm feed pellets

Electric Flat Die Pellet Mill Features
1. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.
2. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.
3. Simple operation, easy maintenance and perfect technical design with less labor.
4. Small and light weight which make it widely used in home, small farm.
5. Geat for processing soft wood pellets and feed pellets

What is a Portable Pellet Mill?

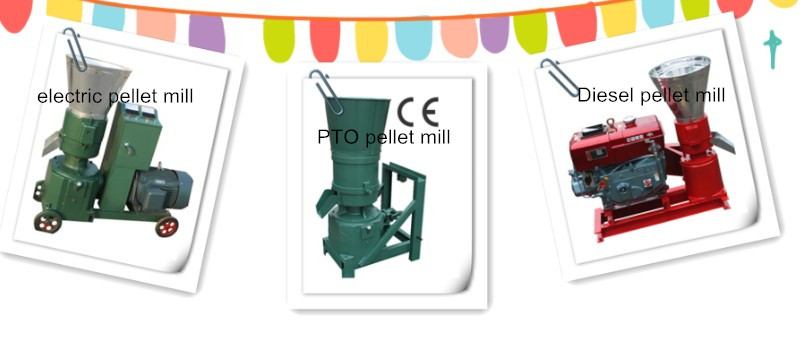

what is a portalbe pellet mill

Portable Pellet Mill, as its name suggests, is a kind of movable machine used for producing pellets. Now it is increasingly welcomed by families not only because of high efficiency, energy conservation and environment protection, but also the convenience and flexibility. You can easily move it to places where there are raw materials.There are mainly three kinds of portable pellet mill in our company: pellet mill with electric motor, pellet mill with diesel engine and PTO pellet mill. They differ in the driven modes.
Pellet mill with electric motor is most widespread portable machine in the world. Where there is electricity, this machine can be driven and operated. Pellet mill with diesel engine is appropriate for places where the diesel is available. Compared with above one, it is more flexible. You can use it on the farm, orchard or anywhere the raw material can be got just with diesel added. PTO pellet mill means power take- off. It is designed to be added on a tractor or truck so that it can draw energy from their engine. This kind of machine is the most portable and flexible one.

Best electric flat die pellet mills for sale. CE Certified pellet machine; Low pellet machine price. Buy from flatdiepelletmill.com, enjoy great after-sale service free!
