AMSPLM 120 Electric Flat Die Pellet Mill


With capacity 40-60kg/h for making wood pellets. You can use them to process a variety of agricultural wastes, such as sawdust, corn stover, straw, rice husk, etc.


Wood pellets 40-60 kg/h
Feed pellets 60-100 kg/h


low price pellet mill

AMSPLM 120 Electric Flat Die Pellet Mill Specification

Model  Power Voltage Capacity Dimension
 AMSPLM120 2.2kw single phase/three phase: 220V 50HZ/380V 50HZ Wood pellets 40-60 kg/h
Feed pellets 60-100 kg/h

Homemade Pellet Mill Introduction
This electric flat die pellet mill is smaller in size, design and structure with capacity of Wood pellets 40-60 kg/h; Feed pellets 60-100 kg/h. Thanks to this salient features, it enjoys great popularity with small scale pellet biomass pellets and animal feed pellets production. You can use them to process a variety of agricultural and forest wastes, such as sawdust, corn stover, straw, rice husk, palm kernel shell and many other wastes into pellets. Low noise, high efficiency and high flexibility, this machine is your ideal pelletizing machine.

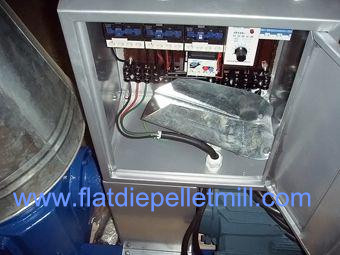

pellet mill electric cabinet

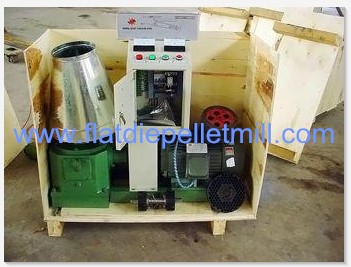

flat die pellet mill

Electric Flat Die Pellet Mill Features
1. Electric flat die pellet mill is driven by electric motor which makes it more energy-saving and environmentally friendly.
2. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break, besides, both sides can use the flat die, thus having a long service life.
3. This pellet machine can also be customized with three rollers or two rollers.
4. Transmission gears are made of high quality alloy steel, surface adopts carburizing and quenching treatment, precision machining by grinding, smooth transmission, low noise, large carrying capacity, low temperature rise, long life etc.
5. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.

two rollers pellet mill

die clamp and flat die

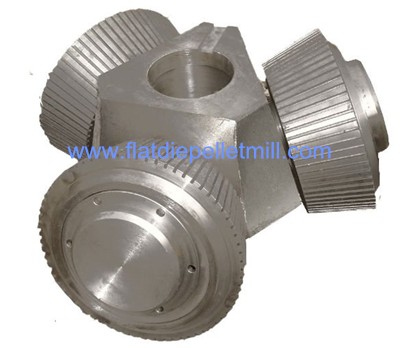

three rollers of flat die pellet mill

6. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.

Flatdiepelletmill.com Supply You Cost-effective Pellet Mill For Home Use

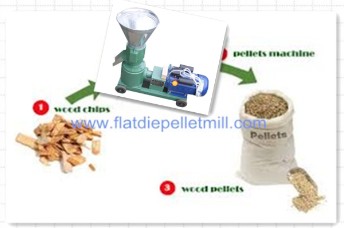

small wood pellet makerAmisy Machinery is established in 2000 and has since been devoted to supplying top quality pellet mill up to Certified European (CE) specifications. We are expert in the design and manufacturing pelleting solutions for any scale pellets production. There are wide ranges of pellet machines including low cost small pellet machine and large pellet machine for factory at higher price. For the various pellet machines for sale online, all of them are qualified to produce quality biomass pellets, and feed pellets production is surely a piece of cake for them. Our machines are made from precision casting technology and strict quality control, thus ensuring long time service life. Looking for cost-effective pellet mill for home? Flatdiepelletmill.com is your best choice!
Homemade Pellets Used as Stove Fuel

wood pelletsHome pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.

You have to prepare raw materials along with a flat die pellet mill which is used to press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.

Best electric flat die pellet mills for sale. CE Certified pellet machine; Low pellet machine price. Buy from flatdiepelletmill.com, enjoy great after-sale service free!
