Vertical Ring Die Pellet Mill

$29,000.00

It is specially designed for processing hard biomass materials like eucalyptus, pine, birch, poplar into biomass pellet fuel. Compact structure and advanced design technology.

Description

Capacity
wood pellets:1800-2000kg/h
feed pellets: 2700-3000kg/h

29000USD

low price pellet mill

Vertical Ring Die Pellet Mill Specifications

Model
Capacity
Power
Dimension
Cross Weight
TRM800
wood pellets:1800-2000kg/h
feed pellets: 2700-3000kg/h
132kw
2800×1600×1550mm
3300kg


Highlights of Vertical ring Die Pellet Mill Design

◆ Vertical ring die, feeding vertically; No arching of raw materials, easy for heating dissipation.
◆ Die fixed, rollers rotating, better for even material distribution.
◆ Independent lubrication; high pressure filtration, clean and unblocked
◆ Independent and frequency changeable cutting device ensuring high pelletizing rate.
Vertical Placed Ring Die

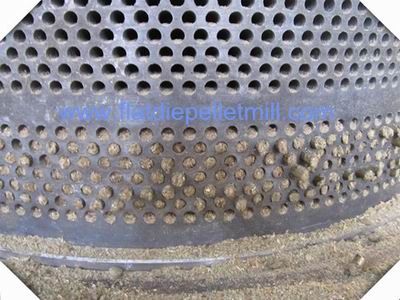

pellet mill ring die

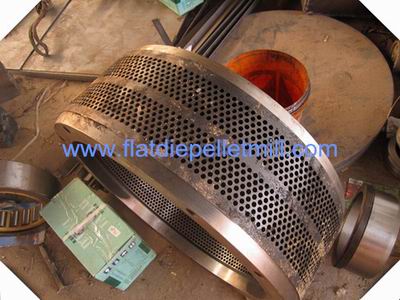

vertical ring die pellet mill

Get to Know More about Vertical Ring Die Wood Pellet Mill
This wood pellet mill is specially designed pellet mill which can process hard biomass material like eucalyptus, pine, birch, poplar as well as crop straw, bamboo sawdust shavings into biomass fuel. This new generation of wood pellet machine effectively solves the difficulty in biological crude fiber granulation and the problem of poor quality. The host drive adopts high efficiency belt drive, the ring die is of quick detachable hoop type, feeder with frequency control feeding device which ensures uniform feeding. Our international advanced manufacturing technology can provide you with a variety of high-quality molds according to your materials for your pellet machine, which can make your machine have a longer service life and lower power consumption, products with better quality.

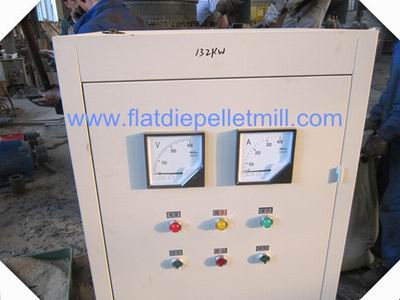

Pellet Mill Electric Control Cabinet

pellet mill electric control cabinet

wood pellets

Vertical Ring Die Wood Pellet Mill Features
1. Suitable to press various biomass material such sawdust, straw and soybean chaff.
2. Compact structure and advanced design technology. Adopting cold-press molding process, this vertical ring die pellet mill has long-term service.
3. High yield with low energy consumption. It can working for 24 hours continual production.
4. Swiss imported transmission parts and Japanese imported bearings ensure a reliable performance.
  Customer Visit & Pellet Mill Delivery

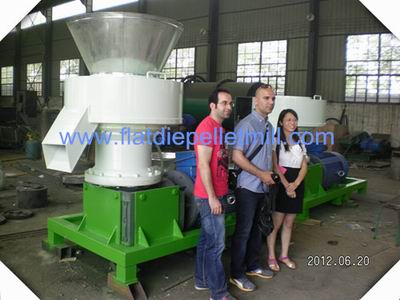

vertical ring die pellet mill factory

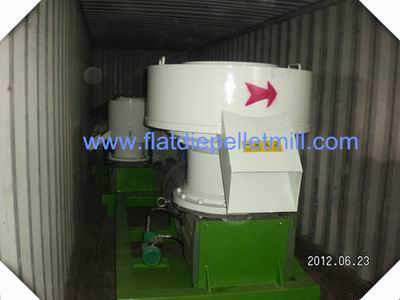

vertical ring die pellet mill delivery
