100-150 kg/h Simplest Pellet Plant


This simplest mobile pellet plant just consists of a pellet mill and hammer mill-a combined pellet mill design for your start up to make your own pellets.


Wood pellets: 100-150 kg/h
Feed pellets: 120-180kg/h


low price pellet mill

What’s A Small Mobile Pellet Plant?
A small pellet plant (hammer mill and pellet mill combined machine or pellet mill with crusher) is a mini combination machine which has the same functions of hammer mill and pellet mill. There are three main parts in smallest pellet plant: wood hammer mill, cyclone and pellet mill. This pellet plant is suitable for home use and small scale pellet business with more compact design and muti-function.

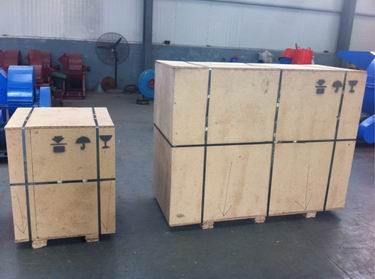

A: Packaging and Delivery
Package: Fumigation-free high density board
Loading Port: Qingdao
Payment: T/T, L/C

small pellet plant

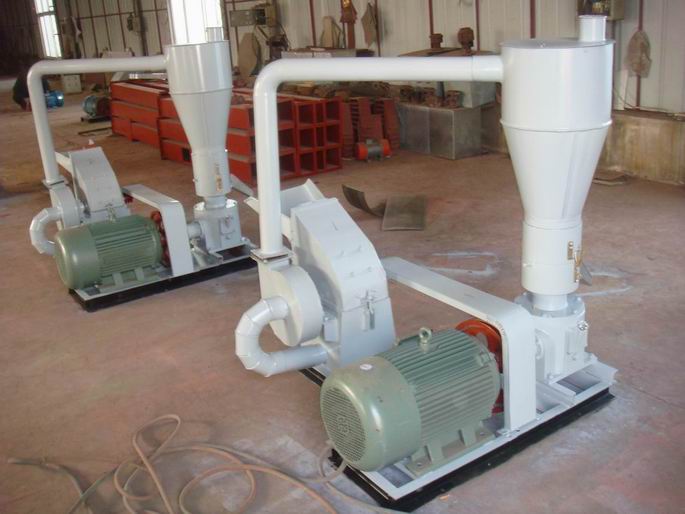

200 small pellet plant

B: AMSPH-200 Smallest Pellet Plant Specifications

Wood pellets: 100-150 kg/h
Feed pellets: 120-180kg/h
15 kw
1.6*1.45*1.8 m
380 kg

Highlights of AMSPH-200 Smallest Pellet Plant
1. Muti-functional. This hammer mill and pellet mill all-in-one machine can crush large wood particles and make them into pellets at the same time. For making biomass pellets, the raw material is usually agricultural wastes like crops stalks, straws and other soft materials; it can not process logs with large diameter. Besides, this combined pellet mill and hammer mill can also process oil cake, grass, alfalfa, etc for making feed pellets.
2. Economical and efficient. With this muti-functional small pellet plant, you will never need to buy wood crusher and wood pellet mill separately, so it can save much cost and space.
3. Suitable for home use. Simplified design and compact structure can meet all basic demand in home made pellets production.
4. Dural and well-knit. Made from high quality stainless steel, this hammer mill and pellet mill combined machine can have a long service life.
5. Adjustable fineness and pellet size. All the size and dimension is determined by the mold screen size. We can make different mold to meet your demand.

Working Principle of Smallest Pellet Plant
★ Simplified muti-functional mobile pellet plant has the similar working principle as the hammer mills and pellet mills.

★ Dry and small wood particles are poured from the feeder and crushed in front hammer parts firstly and crushed powder is collected by cyclone directly. These powders are blowed to pellet mill parts and pressed by rollers and dies. Pressed pellet get out of the all-in-one machine from another outlet.

★ All these particle size and pellet dimension can be adjustable. To hardwood, the cutting speed should be increased. You can adjust the hammer blade liner speed according to the required wood powder fineness. The final pellet size can be from 6 to 12 mm according to your need.
Pellets Feedstock,Wood Pellets and Feed Pellets

wood pellets feedstock

rice husk

rice straw

wheat straw


wood chips

alfalfa pellets

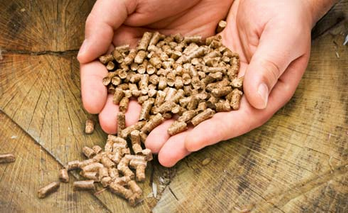

wood pellets

Things Have to Know before Purchasing a Small Pellet Plant
This smallest pellet plant can crush and make wood pellets at one time. You have to pour proper raw material to ensure a normal pellet production.

1. Water Content
Because of the one step process in pellet production, the particle size and moisture of raw material has to be pre-processed. The proper moisture content is about 13%-15%. Newly cut tree branches and grass are very wet and need to be dried.

2. Particle Size
Dry wood branches has to be crushed into small particles before making pellets. If the material is more than 50 mm, please process them into short chips firstly. And please clean the foreign material like stone, dust.

If you are not certain about these details, please feel free to contact us online. We can recommend right machine according to your raw material.
