Due to simple design, high efficiency and lower weight, flat die pellet mill is predominantly employed in small scale pellet production. It has a horizontal die and rollers above the die. As materials fall in from the top, they are compressed between rollers and die to form pellets. So die and rollers are main and crucial parts in pelletizing production, which plays prominent role in affecting the capacity and quality of pellets. Better understanding of them, you can enhance maximum output and increase the service life of the machine.

Roller Parts

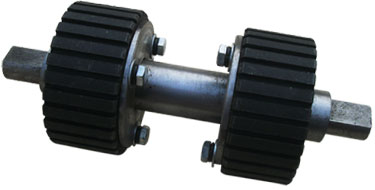

pellet mill rollers

Rollers of homemade pellet mill are vital components for making pellets. The main purpose of rollers is to help the material mixture to get into the die hole. Thus the roll shape and construction are designed for preventing the slippage of the material and give a smooth surface for a better discharge. The material of roller parts must be anti-bearable and not easy to be broken. Rollers in our flat die pellet mills are made from precise material of alloy metal, which makes this core part wear-resistant and not easy to break. In addition, flat die pellet mill usually have two or three rollers that enlarge the capacity of making pellets.

Die Parts

flat die

The diameter of die holes in portable pellet mill is usually 1.5-12mm. Compared to ring die, the spotlights of flat die are as follows: small and lightweight, easy to clean and convenient to maintain. Dies are often made of various types of metals to make sure the die can resist to corrosion. Our flat die is made of high quality alloy steel with best pellet die compression ration. The flat die has many holes for extruding material into the formation of pellets. We can produce different dies as required. Pellet size can be designed to meet your requirements. Generally speaking, for fuel pellets the diameter is from 4.5mm-12mm and for the feed pellet the diameter is from 1.5mm-12mm. They are available in different designs such as the fixed die which is equipped with a rotating roller or the stationary roller with a driven die. You can opt the suitable design based on the raw materials to be used in making pellets.

Adjustment of Rollers and Flat die

The distance between the roller and flat die can impact heavily on how successfully the pellet mill operates. The roller and die are wearing consumable parts, due to the abrasive nature and pressure of compression. The distance set between the roller and die can impact on how much energy the pellet mill uses, the quality of the pellet, pellet mill productivity and the amount of fines produced. Correctly setting up the die on a pellet mill will also increase the life of the roller and die and reduce the cost of changing these consumable parts.
How long will the die and rollers last?

Many buyers are very concerned about this question: how long will the die and rollers last?This answer depends on how often you use the pellet mill and what kind of biomass you pelletize. Take the sawdust pelletizing for example, constant usage of 4-8 hours a day for over 6 months will wear down the die and rollers. You need to replace them. If the pelletized materials are softer biomass like grasses, leaves, the die and rollers can last over one year.

Having a good understanding of the functions of rollers and flat die is a necessary step to enable pellet mills to work efficiently. Rollers and die are quick-wear parts in the portable pellet mill. They are the top concern for customers who tend to purchase a flat die pellet mill. We are professional supplier of pellet mill parts. If you need to customize these parts, please advise us of your specific requirements.
